DC Power 30kva Single Phase diesel Generator
DC Power 30kva Single Phase diesel Generator

DC Power 30kva Single Phase diesel Generator

Regular priceR 128,999.00
/
Tax included. Shipping calculated at checkout.

  • Fast Reliable Nationwide Deliveries
  • Quality products at affordable prices.
  • Secure payment with top notch encryption

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

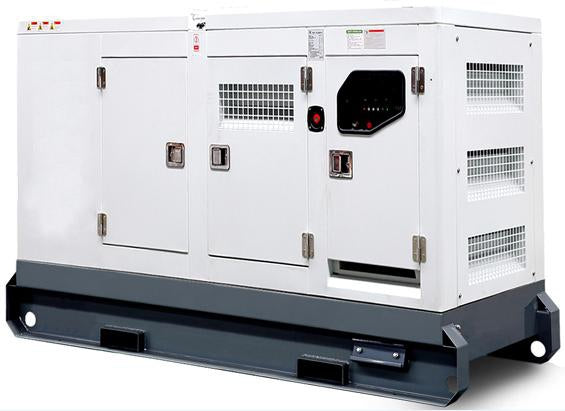

This is a diesel-powered electricity generator. Engine is enclosed in a sound shielded cover, which makes for a quieter run. It is ideal to provide backup power to a home or small business. For your sensitive electronic equipment it is equipped with Automatic Voltage Regulation. The onboard circuit breaker ensures overload protection. This generator offers excellent reliability and durability.

Single phase
Output voltage 220V,50HZ,
Power factor:0.8(lagging)

General Features:
● Coupled with KOFO diesel engine and copy Stamford alternator
● Air filter, fuel filter, oil filter
● Lube-oil drain valve fitted
● Water-cooled
● 8 hrs operation base fuel tank
● Soundproof
● MCB CHINT breaker
● Operation & Maintenance manual
● Steel-fabricated base frame with power coating
● Battery free maintance

Voltage - 220
Hz - 50
Phase - 1
P.F.Cos - 0.8
Standby Amps - 109
Standby Ratings (kW/kva) - 33
Prime Ratings (kW/kva) - 30


Prime power (RPR) is the normal output continuously available, where the average load (variable) does not exceed
70% of the prime power rating during an operating period of 250 hours. The total operating time at 100% prime power
must not exceed 500 hours per year.A 10% overload is available for a maximum of 1 hour in 12 hours of operation and
must not exceed a total of 25 hours per year.
Standby Power (LTP) is the maximum output available (at variable load), for up to 200 hours per year. The average
load (variable) must not exceed 80% of the standby power rating, with less than 25 hours per year at the full standby
rating. No overload is available. The genset must not operate, at standby rating, in parallel with the public utility under
any circumstances.

Model - 184G
Brand - DE
Prime Power (kW) - 24kW
Excitation Type - Brushless self-excitation
Voltage Regulator Type - Automatic Voltage Regulator
AVR Model - SX460
Power Factor (Cos) - 1
Overspeed - 2250RPM
Number of Pole - 4
Winding Leads - 12
Voltage regulation - ±1%
Total harmonics (TGH/THC) - at no load < 1.5% - on load < 2%
Wave form: NEMA=TIF - <50
Wave form: I.E.C = THF - <2%
Bearing - Single
Coupling - Direct

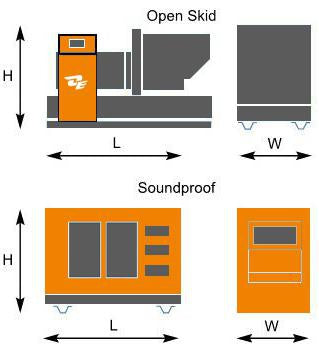

Overall Size: 2200*930*1230 mm(L*W*H)
Weight:967Kgs

Please Note Installation is Excluded

Please Take Note That This Product Is Only Shipped In Gauteng.
